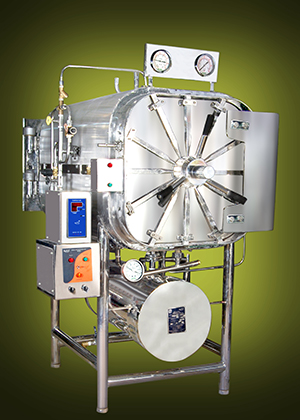

Horizontal Model for easy loading and unloading of Materials Strictly Fabricated to ASTM Standard Section 8 as per pressure vessel norms. All welding are done by the process of TIG and tested by in – house Radiography and die penetrate test.
- Inner Chamber : SS 316
- Steam Jacket : SS 304
- Working pressure : 1.2kg/cm2 & 2.1kg/cm2
- Working Temperature : 1210C / 1340C
- Door : Sliding Door / Double Door
- Door Operation : Manual Radial / Sliding / Motorized Hinged Door
- Mode of control : Multiport valve / Automatic
- Gasket : Silicon Expansion type
- 1. High Vacuum with vacuum pump
- 2. Fully Automatic Micro processor or PLC based Color Touch Screen.
- 3. SS Trolley and SS Carriage
- 4. Data Logging System
- 5. Double Door System
- 6. Vertical/Horizontal Sliding door
| Model | Chamber (W)X(H)X(DEEP) (mm) |
Volume Ltr | Voltage | Power Kw | Door Lock |
| HR1836 | 450 X 450 X 900 | 182 | 440 | 12 | Radial / V. Sliding /Motorized |
| HR2036 | 500 X 500 X 900 | 225 | 440 | 12 | Radial / V. Sliding /Motorized |
| HR224 | 600 X 600 X 1200 | 432 | 440 | 18 | Radial / V. Sliding /Motorized |
| HR234 | 600 X 900 X 1200 | 648 | 440 | 24 | Radial /H. Sliding/Motorized |
| HR235 | 600 X 900 X 1500 | 810 | 440 | 36 | Radial / H. Sliding /Motorized |
| HR334 | 900 X 900 X 1200 | 972 | 440 | 36 | Radial / H. Sliding /Motorized |
| HR335 | 900 X 900 X 1500 | 1215 | 440 | 36 | Radial / V. Sliding /Motorized |
