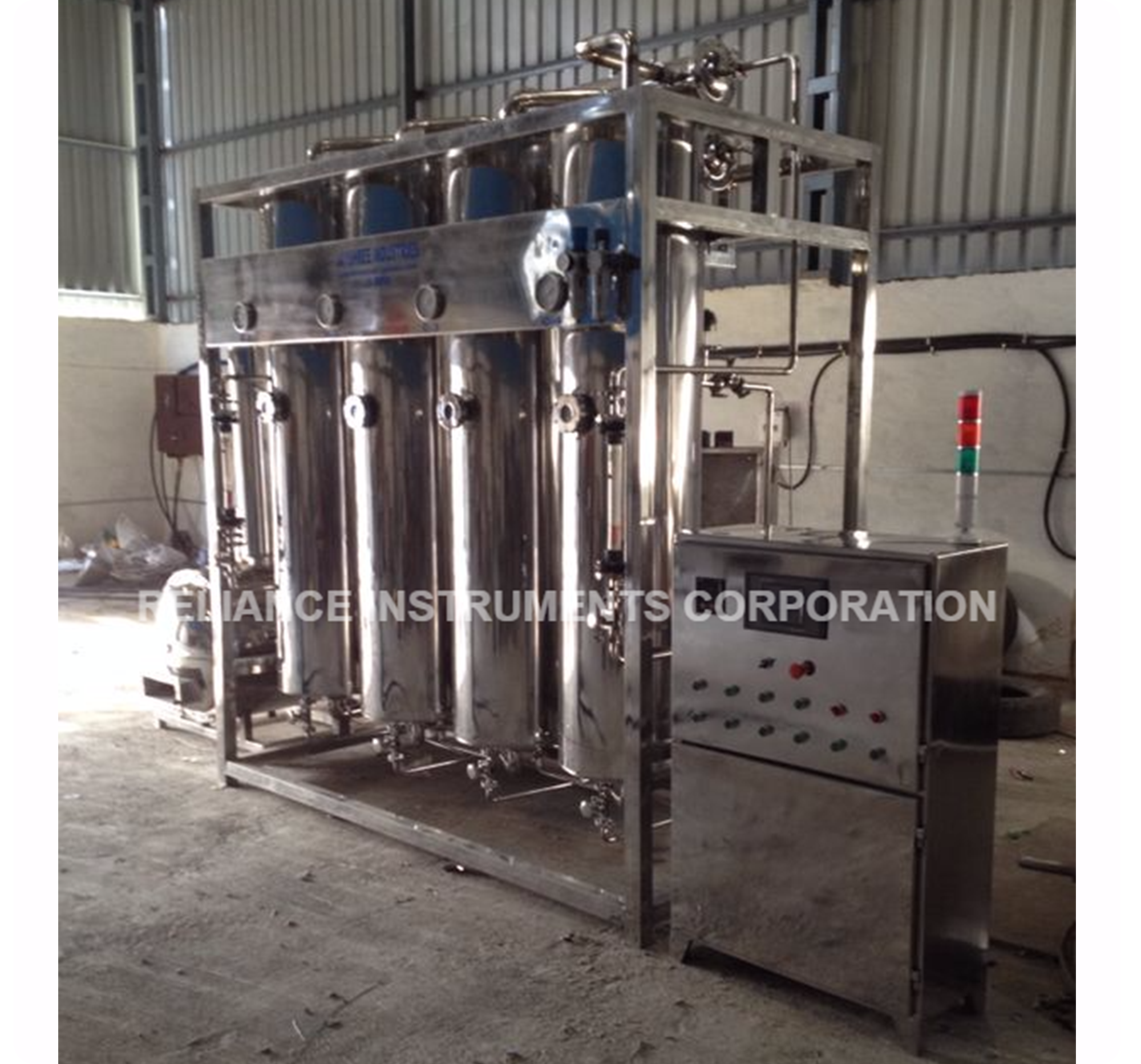

Multi Column Distillation plant produces Pyrogen free sterile water for injection (W. F. I.). The Water for Injection (WFI) produced by these plants is quite economical due to low maintenance and low operational cost. Multi Column Distillation plant consists of specially designed columns which make optimum use of the principles of inter-stage heat exchange to produce pure Pyrogen free sterile distilled water for Injectables as per IP/BP specification.

Specification

• The complete unit is made up of SS 316 / 316 L with active surface being electro polished
• Distillate temperature 95 0C which meets IP/BP/USP specifications.
• Double tube sheet for first heat exchanger where boiler steam is used.
• Insulation is done by Resin bonded glass wool
• All contact parts are S. S 316/316L and all joints are sealed with Teflon Gasket.
• PLC based fully automatic panel board provided with printer.
• Orbital welding for tube-to-tube sheet joints
• Pyrogens are removed by centrifugal force developed and specially designed spiral baffle.

Features

• Total energy saving is 75% as less heating energy and less cooling water is required.
• Maintenance cost is low as there are no moving parts except pump.
• Sanitary triclover fittings for quick and easy preventive maintenance.
• Provided with compact control panel board made up of SS304
• Conductivity meter for feed water and final distillate.
• Feed water pump is a positive displacement piston type-reciprocating pump.
• User-friendly operator interface to allow the easy visual inspection of the cycle monitoring and control.
